Beschreibung

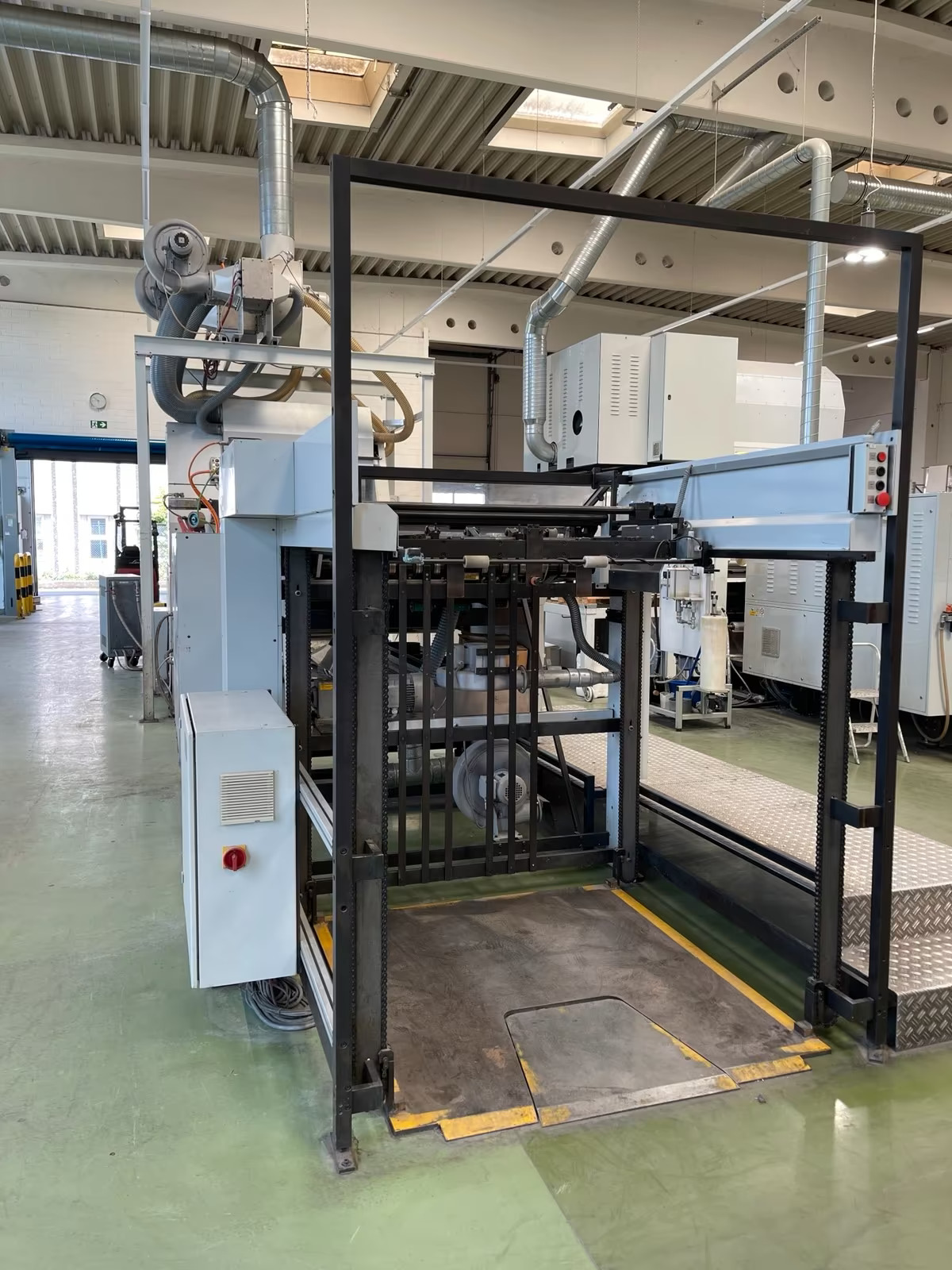

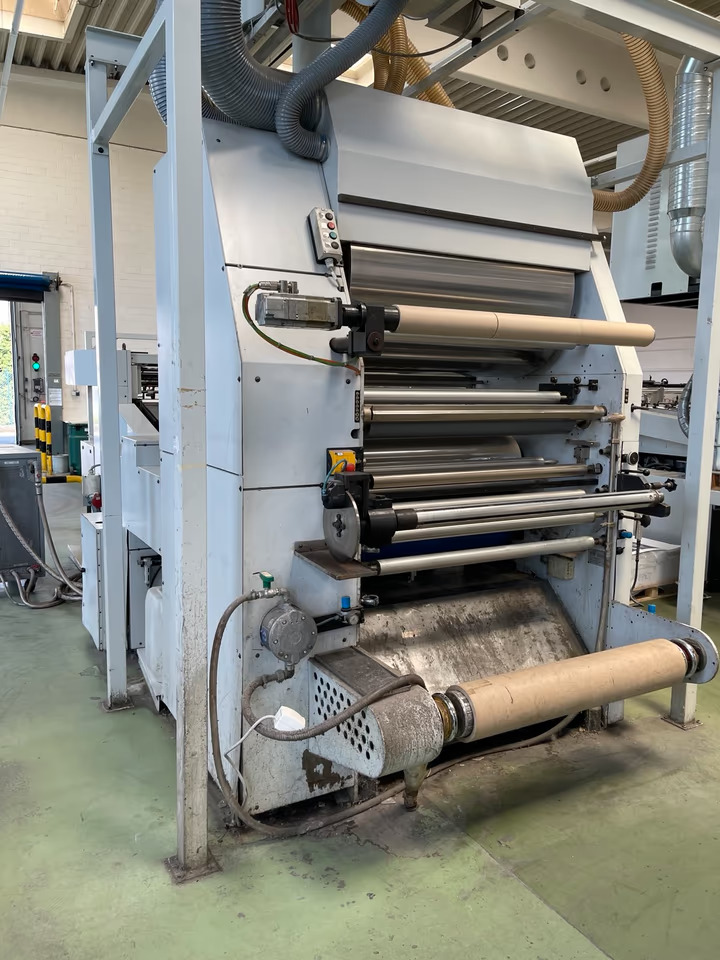

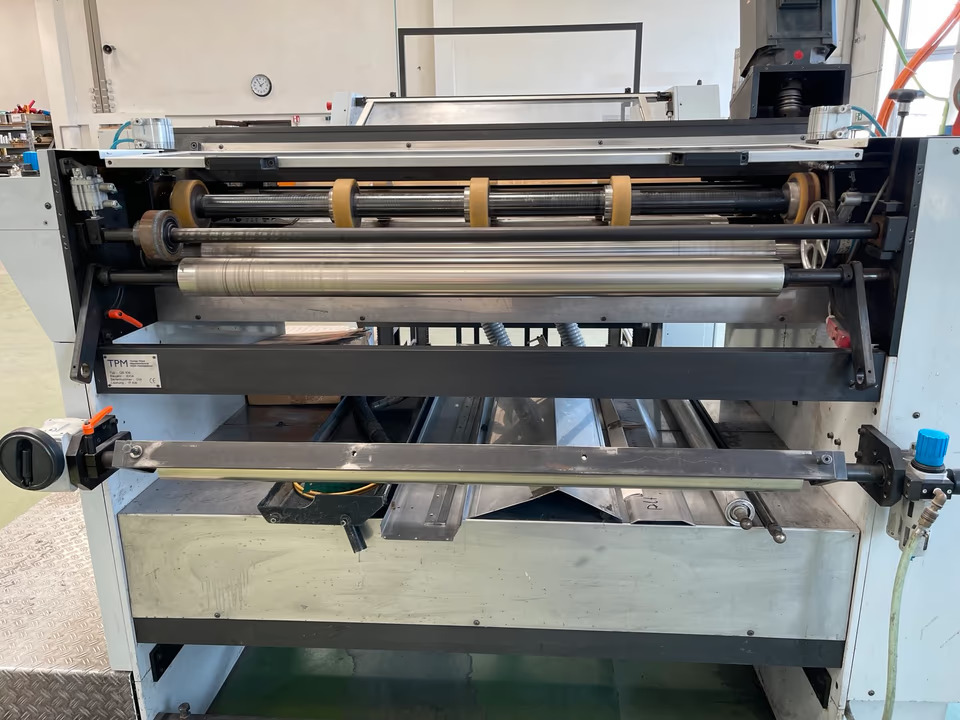

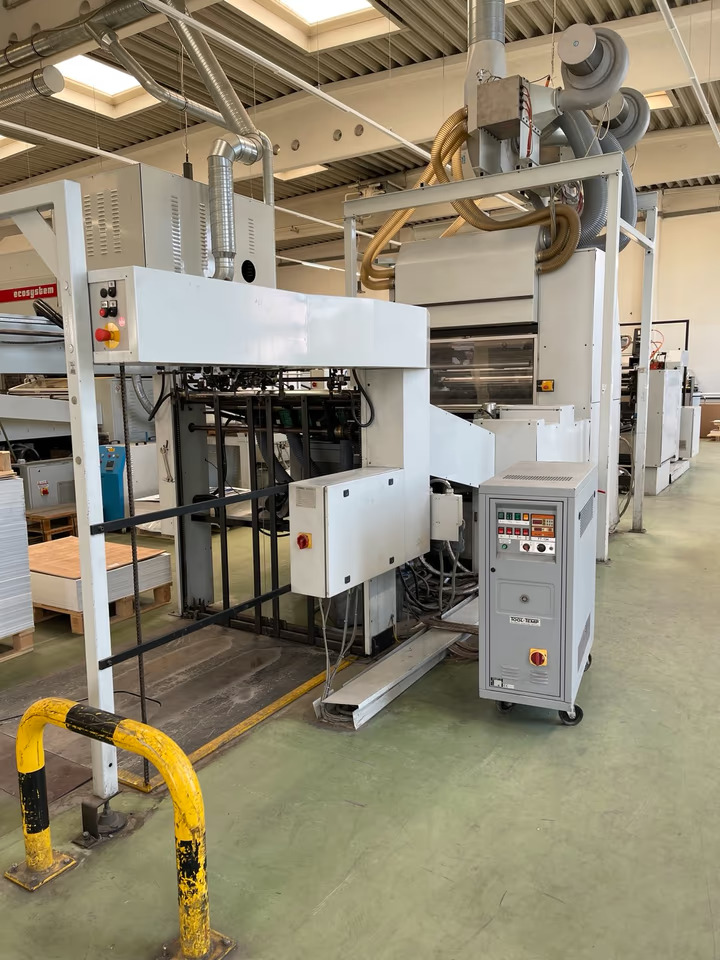

Laminating Machine TPM 106
Year of production 2005
Counter: 22353 Hours
Minimum format: 210 mm width x 315 mm length
Maximum format: 1,060 mm width x 1,420 mm length
Sheet weight: 80 gsm to 500 gsm
Mechanical speed: 80 m/min or 10,000 sheets/hour
Production speed depends on adhesive application and sheet weight
Standard Configuration of Machine Components
Sheet feeder Mabeg M3/142
Anti-dusting calender 106
Laminating unit KW 106
Stacker delivery 106 x 142
Central PLC control system
Siemens IMC 05/0P 3 visualization
Line ON/OFF function and speed control (+/-) available at each module
Mechanical speed: 80 m/min or 10,000 sheets/hour
Location Germany.
In production
Available immediately
